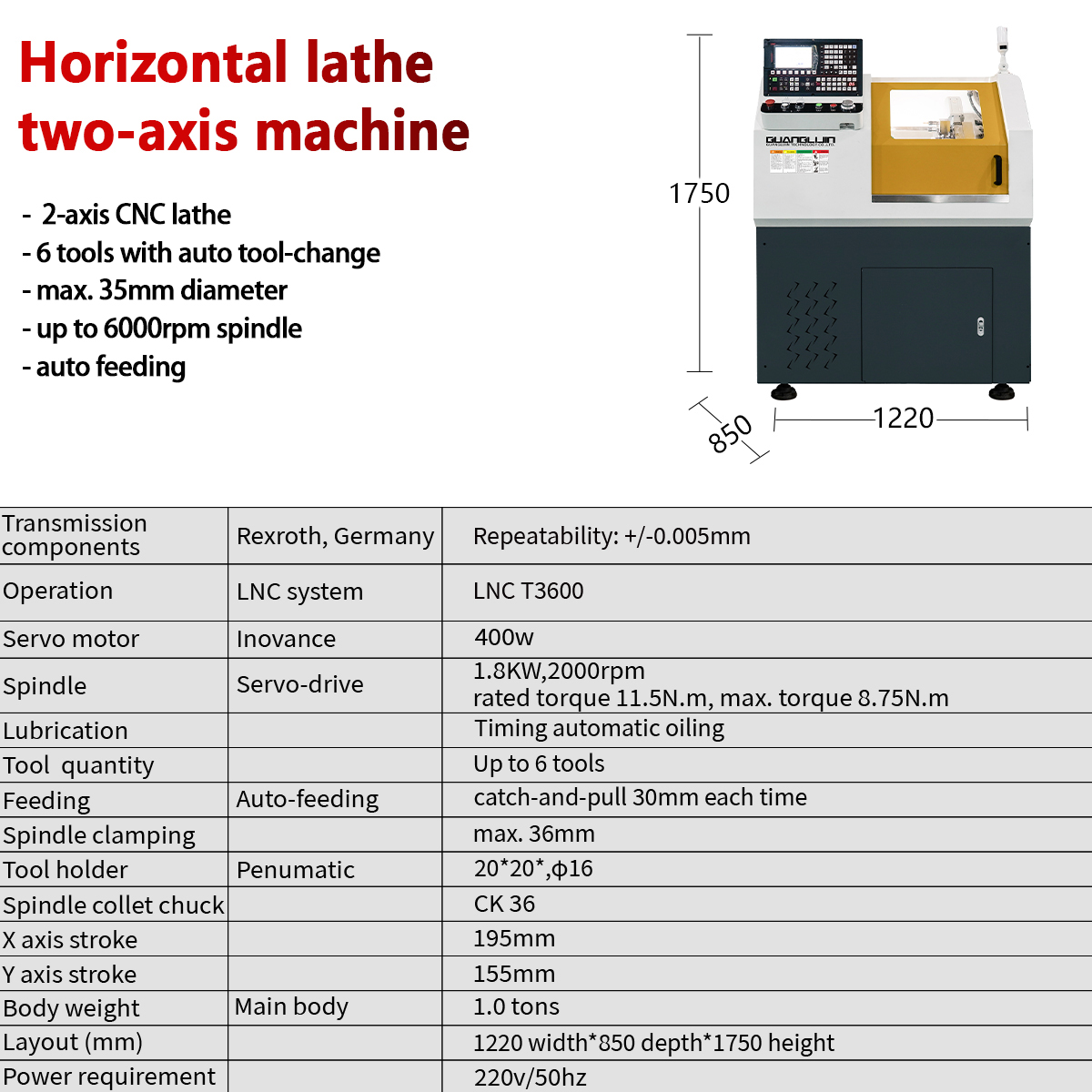

Technical Parameters:
| G2-200 Lathe | |||
| No. | Item | Details | |
| 1 | Transmission components | Rexroth, Germany | Repeatability: +/-0.005mm |
| 2 | Operation | LNC system | LNC T3600 |
| 3 | Servo motor | Innovance | 400W |
| 4 | Spindle | servo-drive | 1.8KW, 2000rpm rated torque 11.5N.m, max torque 8.75 N.m |
| 5 | Lubrication | Timing automatic oiling | |
| 6 | Tool quantity | Up to 6 tools | |
| 7 | Feeding | auto-feeding | catch-and-pull 30mm each time |
| 8 | Spindle clamping | max. 45mm | |
| 9 | Tool holder | 10*10, φ16 | |
| 10 | Spindle collet chuck | penumatic | CK36 |
| 11 | X axis stroke | 195mm | |
| 12 | Y axis stroke | 155mm | |
| 13 | Layout (mm) | main body | 850*1170*1750 |
| 14 | Power requirement | 220v/50hz | |
| 15 | Body weight | 1.0 tons | |
Support and Services:
Technical support Installation Training Maintenance Troubleshooting Software upgrade
Packing and Shipping:
Fumigation wooden case by sea or by air
FAQ:
Q: Are you a dealer or manufacturer?A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.Q: Where are you from?A: We are from Shenzhen China, one of the most creative city in the world.Q: Do you provide overseas support or service?A: Yes, we have a technican team which can travel abroad to do global service and support.Q: Does this machine come with any certification?A: Our machines are CE certificated.
